Aegir Water Tank Level Monitoring System


Tank Level Monitoring System - We are adding a new product to our suite of innovative water management and sustainability solutions. Our patented level monitors are highly precise and convenient to install. It can monitor water (or any liquid) level and automate refilling or transfer.

Features

  • Solar powered, with no wires for power or communication
  • Ultrasonic level sensors with no liquid contact, for long life
  • Automate multiple pumps and valves in your pump room
  • Usage data and analytics in your app
  • More than 2km (and up to 10km) range with LoRa
  • Precise within 1mm precision in 25 to 750 cm range
👍 Best suited for Commercial/Industrial Spaces with Several OHTs & Sumps

Specifications

Working Voltage5V DC
Avg Working Current50 uA
Blind Distance0-28 cm
Measure Range28-750 cm
Precision1 mm
Built-in Backup2.2 Ah
Solar Current180 mA
CommunicationLoRa
Comm Range2-10 km
ProcessorDual-Core MCU

Description

We are adding a new product to our suite of innovative water management and sustainability solutions. This is a solar powered wireless device to monitor water level, report usage and automate level control and filling.

IoT Based Water Management

Those dangling wires and crude level management setups are a thing of the past. Let your level monitor double up as your usage analyzer as well. Totally wireless solar powered ultrasonic devices on LoRa.


Highlights

  • Solar

    • No hassle of wiring/power on your OHT's. If your OHTis any place with even a couple of hours sun a day, our devices are just drop-and-play. No wiring andcomes pre-configured. Just place it and see level and usage on our friendly mobile/web app.
  • Precise

    • We use premium ultrasonic level sensors that canprecisely measure within a millimeter, up to seven meters deep.
  • Usage Reports

    • Volume remaining is constantly monitored and reported, thus enabling usage tracking.
  • Automation

    • With the optional motor controller, you can automate the motor operation fully. No more overflows or empty tanks. this is my md file. Highlights is the main heading and below are sub heading. can we make it as list

Technology

  • Ultrasonic Level Monitoring

    • This highly precise device works well with any kind of water, and up to large depths over 7m. Can be used safely for sewage as well as raw water, and at any temperature.
  • LoRa Communication

    • Wireless communication for up to 2km, our level monitors can talk to a gateway and optionally control a pumping station in that radius.

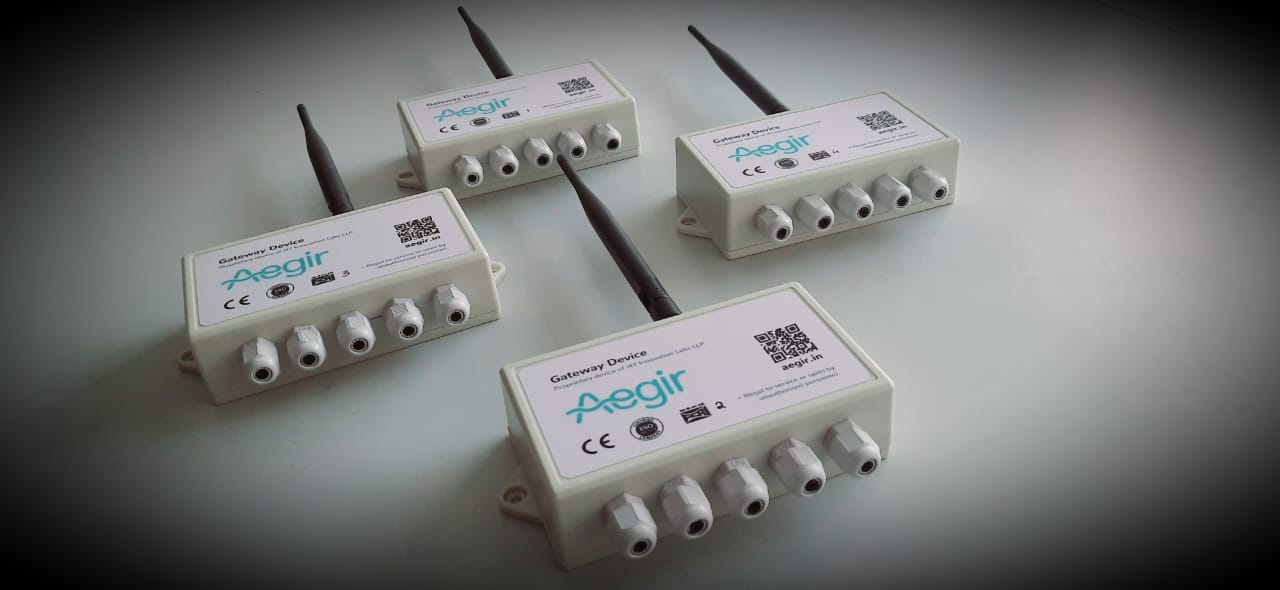

  • GSM/WiFi Gateway

    • Our LoRa enabled gateway devices can talk to 100+ monitors and securely transmit the readings over to our cloud servers, using WiFi or GSM.

App Based

All observed data and extended analytics derived outof it are made available near real-time on an easy to use mobile application. Volume of usage and comparison to recommended usage levels would help you gauge and accordingly tune your usage.
